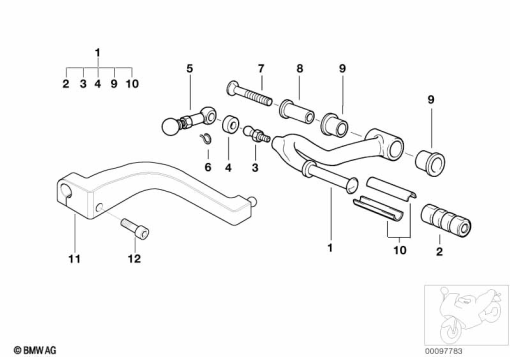

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 41 2 333 452 | SHIFT LEVER | - | |
| 2 | 23 41 7 680 761 | PAD FOR FOOT-OPERATED SHIFT LEVER | - | |
| 3 | 07 11 9 901 736 | BALL PIN | - | |
| 4 | 23 41 7 650 149 | PLASTIC BUSH | - | |
| 5 | 23 41 2 333 265 | SELECTOR ROD - L=48MM | - | |
| 6 | 07 11 9 987 611 | SAFETY CLIP - S10 | - | |
| 7 | 46 52 1 454 158 | COUNTERSUNK HEAD SCREW - M10X50-8.8 | - | |
| 8 | 23 41 1 340 413 | SLEEVE | - | |
| 9 | 23 41 1 341 344 | BUSH | - | |
| 10 | 23 41 8 524 155 | BEARING SHELL | - | |
| 11 | 23 00 7 653 994 | SHIFTING ARM | - | |
| 12 | 07 11 9 900 687 | FILLISTER-HEAD SCREW - M6X35 | - |
