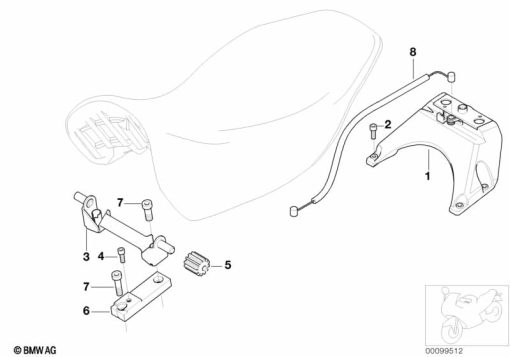

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 7 664 433 | LOCK SUPPORT | 1 | |
| 2 | 46 63 7 653 731 | OVAL-HEAD MACHINE SCREW, BLACK - M6X16 | 1 | |
| 2 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 | |
| 3 | 52 53 2 324 341 | HOLDER | 1 | |
| 4 | 07 11 9 920 148 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNS | 1 | |
| 5 | 16 11 2 323 615 | BUMP STOP | 1 | |
| 6 | 52 53 7 654 284 | SUPPORTING BRACKET | 1 | |
| 7 | 07 11 9 900 555 | FILLISTER-HEAD SCREW - M5X16-Z1-ST-ZNS | 1 | |
| 8 | 51 25 7 664 847 | BOWDEN CABLE - 365MM | 1 |
