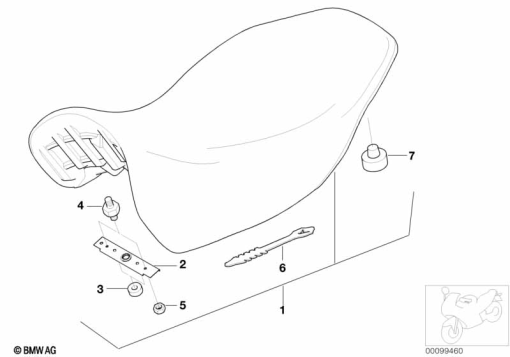

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 7 659 471 | BENCH SEAT, HIGH | - | |
52 53 7 659 471 | BENCH SEAT, HIGHAlternative for position 1 | - | ||
52 53 7 659 472 | SEAT BENCH, HIGH, RED/GRAYAlternative for position 1 | - | ||
52 53 7 659 471 | BENCH SEAT, HIGHAlternative for position 1 | - | ||
52 53 7 659 474 | SEAT BENCH, LOW, BLACKAlternative for position 1 | - | ||
| 2 | 46 62 2 328 786 | PLATE | - | |
| 3 | 52 53 7 651 120 | RUBBER WASHER | - | |
| 4 | 64 11 9 175 671 | RUBBER BUFFER | - | |
| 5 | 07 12 9 905 826 | HEX NUT - AM6-A2-70 | - | |
| 6 | 71 11 2 316 481 | HOLDING STRAP | - | |
| 7 | 52 53 7 664 664 | BUMP STOP - H=10 | - |
