R1150GS ADV (R21A) | Lighting

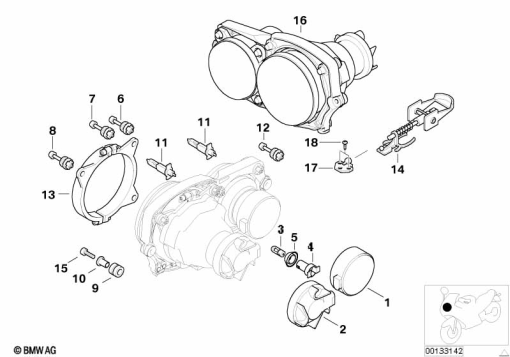

SINGLE COMPONENTS FOR HEADLIGHT
Diagram #63_0580 | 22 parts | 3 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 2 306 967 | COVERING CAP HIGH BEAM | 1 | |
| 2 | 63 12 2 306 965 | LAMP COVER LOW BEAM | 1 | |
| 3 | 07 11 9 978 256 | BULB | 1 | |
| 3 | 07 11 9 978 2561 | PARKING BULB | 1 | |
| 3 | 07 50 9 063 576 | BULB - 12V 4W | 1 | |
| 4 | 63 12 2 306 298 | BULB SOCKET | 1 | |
| 5 | 63 12 2 306 297 | RUBBER GROMMET | 1 | |
| 6 | 63 12 2 350 639 | SUPPORT F HIGH BEAM - L=15MM | 1 | |
| 7 | 63 12 2 350 625 | SUPPORT F LOW BEAM - L=21MM | 1 | |
| 8 | 63 12 2 350 621 | ADJUSTING ELEMENT, HEADLIGHT | 1 | |
| 9 | 46 63 2 328 874 | GROMMET | 1 | |
| 9 | 31 42 1 235 615 | RUBBER GROMMET | 1 | |
| 10 | 63 12 7 727 887 | COLLAR BUSH - 18X6,1X8-ZNNIV | 1 | |
| 11 | 07 50 0 018 225 | BULB H1 POLAR - 12V 55W BLUE | 1 | |
| 11 | 63 21 7 160 777 | BULB - 12V 55W H1 | 1 | |
| 12 | 63 12 2 350 623 | JOINT SLEEVE | 1 | |
| 13 | 63 12 2 350 637 | ADJUSTING RING | 1 | |
| 14 | 63 12 2 350 614 | HEAD LIGHT VERTICAL AIM CONTROL | 1 | |
| 15 | 46 63 7 653 732 | FILLISTER HEAD SCREW - M6X25 | 1 | |
| 16 | 62 21 2 328 696 | BRACKET HEADLIGHT | 1 | |
| 17 | 63 12 7 667 241 | SUSPENSION | 1 | |
| 18 | 63 12 7 667 242 | SCREW - 4X12 | 1 |
