R1150GS ADV (R21A) | Lighting

FOG LIGHTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #63_0754 | 33 parts

100%

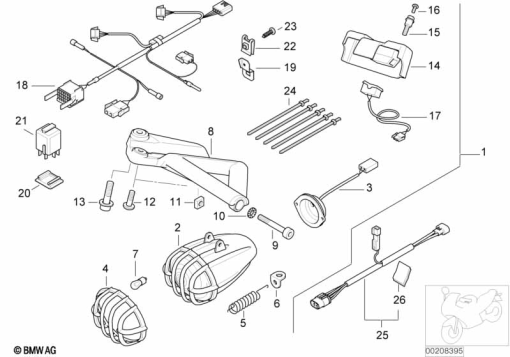

R1150GS ADV (R21A) FOG LIGHTS exploded view parts diagram

Parts List (33)

#	Part Number	Description	Qty
1	71 60 7 669 359	SET: INSTALLING SET FOG LAMPS (to 12/02)	-
	71 60 7 669 359	SET: INSTALLING SET FOG LAMPS (from 12/02)Alternative for position 1	-
	61 12 7 680 102	SET: SET OF ADAPTER LEAD, FOG LAMP (from 12/02)Alternative for position 1	-
2	71 60 7 664 590	FOG LIGHTS	-
3	63 17 7 658 478	COVER LID	-
4	71 60 7 669 381	GRID	-
5	71 60 7 669 382	SPRING	-
6	71 60 7 671 711	SPRING RETAINER	-
7	63 21 7 160 779	BULB - 12V 55W H3	-
8	71 60 7 669 385	BRACKET LEFT	-
	71 60 7 669 386	BRACKET RIGHTAlternative for position 8	-
9	63 17 7 661 893	FILLISTER-HEAD SCREW - M6X40	-
10	63 17 7 661 894	WASHER - 6,4	-
11	63 17 7 661 895	SQUARE NUT - M6	-
12	46 63 2 325 999	FLANGED CAP SCREW - M5X20 SW	-
13	07 11 9 906 058	FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI	-
14	71 60 7 669 881	SWITCH HOUSING	-
15	32 71 7 652 161	SCREW - M8X30	-
16	46 63 7 652 160	OVAL-HEAD SCREW BLACK - M5X8	-
17	61 31 7 658 473	SWITCH WITH CABLE	-
18	71 60 7 669 387	WIRING HARNESS, FOG LAMP (to 12/02)	-
	71 60 7 669 387	WIRING HARNESS, FOG LAMP (from 12/02)Alternative for position 18	-
-	61 12 7 680 102	SET: SET OF ADAPTER LEAD, FOG LAMP (from 12/02)	-
19	71 60 7 669 383	BRACKET	-
20	61 13 1 382 541	BRACKET, PLUG CONNECTION GRAY	-
21	61 36 6 902 041	MINIRELAY, MAKE CONTACT, YELLOW	-
	61 36 7 924 276	mini-relay contactorAlternative for position 21	-
	61 36 7 924 276	MINI-RELAY CONTACTORAlternative for position 21	-
22	07 12 9 904 221	BODY NUT - ST4,2-3-ZNS3	-
23	07 11 9 906 748	FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13	-
24	61 13 1 367 599	CABLE TIE - L=200MM/B=3,6MM	-
25	61 12 7 680 102	SET: SET OF ADAPTER LEAD, FOG LAMP (from 12/02)	-
26	01 29 7 684 456	INSERTION SHEET, FOG LAMP (from 12/02)	-
