R1150GS ADV (R21A) | Fuel Supply

PETROL GAUGE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #16_0447 | 4 parts

100%

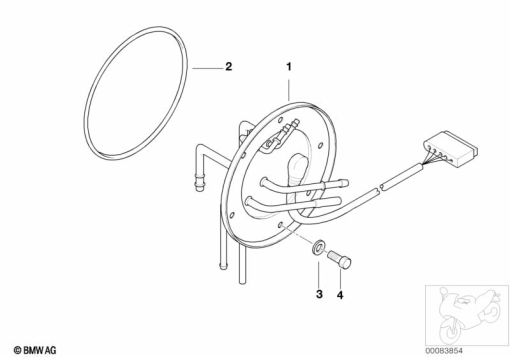

R1150GS ADV (R21A) PETROL GAUGE exploded view parts diagram

Parts List (4)

#	Part Number	Description	Qty
1	16 14 1 341 922	PETROL GAUGE	-
	16 14 7 671 120	PETROL GAUGEAlternative for position 1	-
2	16 14 1 341 008	O-RING	-
4	07 12 9 902 975	HEX NUT - AM5-8-ZNS3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
