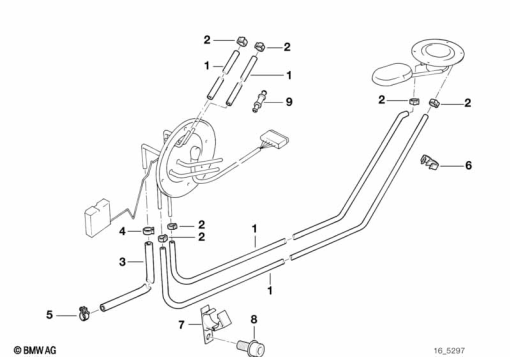

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 1 342 049 | HOSE RUNNING METER - Ø 8X4,5 (meter) | - | |
16 11 1 342 050 | BULK MATERIAL, FUEL HOSE - Ø 8X4,5 (meter)Alternative for position 1 | - | ||
| 2 | 16 13 1 379 229 | HOSE CLAMP - 8-9.5MM | - | |
64 12 1 378 285 | HOSE CLAMP - 66/100Alternative for position 2 | - | ||
| 3 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | - | |
| 4 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 5 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | - | |
| 6 | 12 42 1 284 411 | CABLE HOLDER | - | |
| 9 | 61 66 1 382 908 | CONNECTION PIECE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
