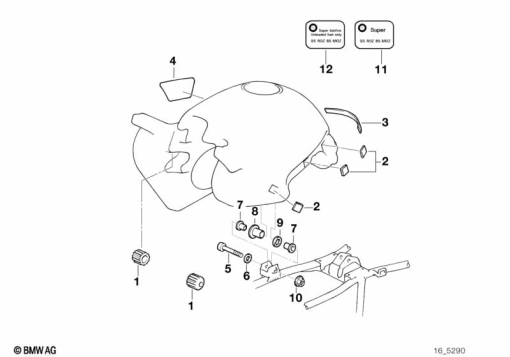

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 323 615 | BUMP STOP | - | |
| 3 | 16 11 2 324 872 | SEALING - 290MM | - | |
16 11 7 664 599 | SEALING - 290MMAlternative for position 3 | - | ||
| 5 | 07 11 9 901 033 | FILLISTER-HEAD SCREW - M8X45-8.8 | - | |
| 6 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 7 | 13 90 1 716 097 | SLEEVE | - | |
| 8 | 16 11 2 313 045 | RUBBER MOUNTING | - | |
| 9 | 16 11 2 313 079 | RUBBER WASHER | - | |
| 10 | 18 21 1 464 095 | NUT - M8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
