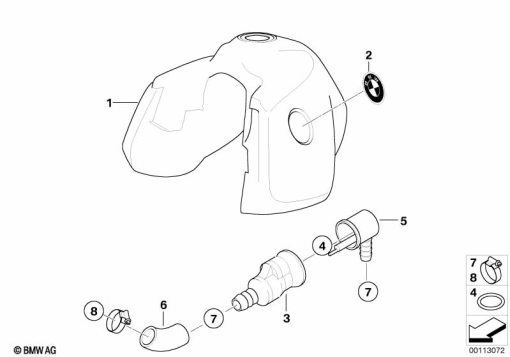

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 324 870 | PRIME COATED SHEET-STEEL FUEL TANK | - | |
16 11 7 664 109 | FUEL TANK, LARGE PRIMED - 30LAlternative for position 1 | - | ||
| 2 | 16 11 7 664 597 | BADGE - D=78MM | - | |
52 53 7 686 465 | BADGE - D=82MMAlternative for position 2 | - | ||
| 3 | 16 11 7 666 736 | CONNECTING SLEEVE | - | |
| 4 | 13 53 7 700 797 | O-RING | - | |
| 5 | 16 11 7 666 735 | QUICK-RELEASE COUPLING - 90° | - | |
| 6 | 16 12 7 175 977 | FUEL HOSE - E6X11MM/FPM (meter) | - | |
| 7 | 13 71 7 655 875 | HOSE CLAMP - 12,5-14,5MM | - | |
| 8 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - |
