R1150GS ADV (R21A) | Fuel Preparation

INTAKE MANIFOLD

Diagram #13_0839 | 4 parts

100%

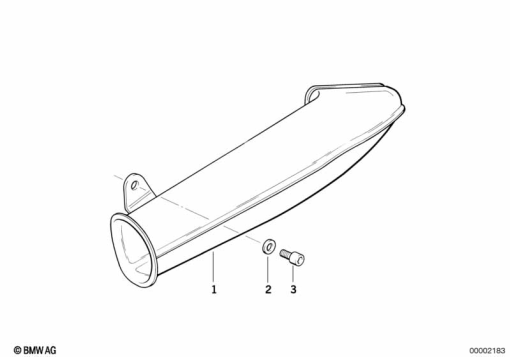

R1150GS ADV (R21A) INTAKE MANIFOLD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
13 71 1 341 415
INTAKE MANIFOLD1
2
07 11 9 903 791
WASHER - A6,4-200HV-ZNS31
2
07 11 9 936 426
FLAT WASHER1
3
07 11 9 920 148
FILLISTER-HEAD SCREW - M6X12-8.8-ZNS1
