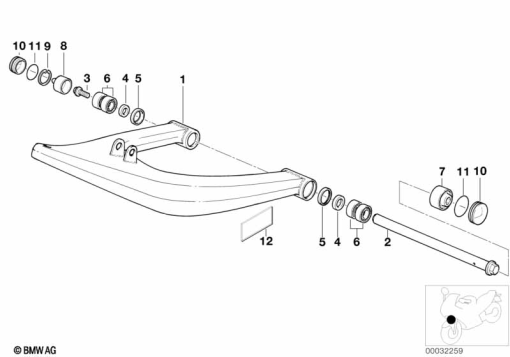

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 345 526 | BLACK TRAILING ARM | 1 | |
| 1 | 31 42 2 345 526 | BLACK TRAILING ARM | 1 | |
| 2 | 31 42 2 314 501 | AXLE | 1 | |
| 3 | 07 11 9 900 029 | HEX BOLT - M12X20-8.8-ZN | 1 | |
| 4 | 31 42 2 314 058 | SPACER | 1 | |
| 5 | 31 42 2 314 426 | SHAFT SEAL | 1 | |
| 6 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | 1 | |
| 7 | 31 42 2 314 056 | BOLT CAP, LEFT | 1 | |
| 8 | 31 42 2 314 303 | CAP RIGHT | 1 | |
| 9 | 07 11 9 905 077 | LOCK RING - 42X1,75 | 1 | |
| 10 | 31 42 2 314 304 | COVERING CAP | 1 | |
| 11 | 31 42 2 314 981 | O-RING | 1 |
