R1150GS ADV (R21A) | Front Suspension
MOUNTING PARTS F FRONT SPRING STRUT ASSY

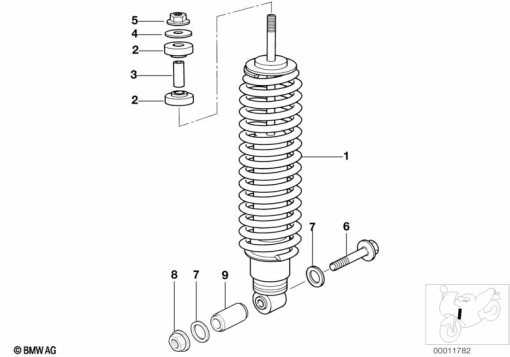

Diagram #31_0532 | 7 parts
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 660 284 | SPRING STRUT, FRONT | - | |
| 2 | 31 42 2 311 994 | BUSH | - | |
| 3 | 31 42 2 311 993 | PIPE | - | |
| 4 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | - | |
| 5 | 07 11 9 906 226 | HEX NUT - M10X1,25-ZNS3 | - | |
| 8 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | - | |
| 9 | 31 42 2 331 784 | RUBBER MOUNTING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
