R1150GS ADV (R21A) | Frame, Fairing, Cases
WHEEL COVER, UPPER

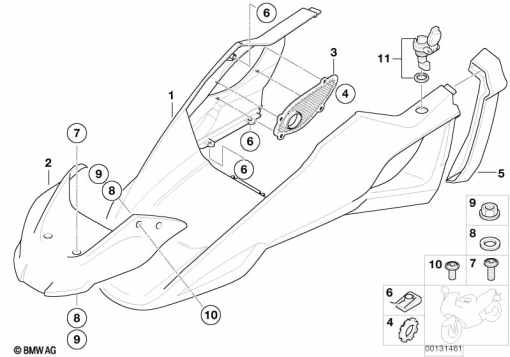

Diagram #46_0770 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 7 666 022 | FRONT WHEEL FENDER, UPPER - ROHTEIL / BLANK | 1 | |
| 2 | 46 61 7 664 390 | MUDGUARD EXTENSION | 1 | |
| 3 | 46 61 2 328 821 | GRID LEFT | 1 | |
| 3 | 46 61 2 328 822 | GRID, RIGHT | 1 | |
| 4 | 46 63 7 653 162 | WAVE WASHER | 1 | |
| 5 | 46 63 2 328 689 | CONNECTION PIECE LEFT | 1 | |
| 5 | 46 63 2 328 690 | CONNECTION PIECE RIGHT | 1 | |
| 6 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 7 | 63 13 7 655 661 | OVAL HEAD SCREW - M5X25 | 1 | |
| 8 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 9 | 07 12 9 902 975 | HEX NUT - AM5-8-ZNS3 | 1 | |
| 10 | 46 63 2 325 999 | FLANGED CAP SCREW - M5X20 SW | 1 | |
| 11 | 61 13 1 391 630 | PLUG-IN SOCKET | 1 |
