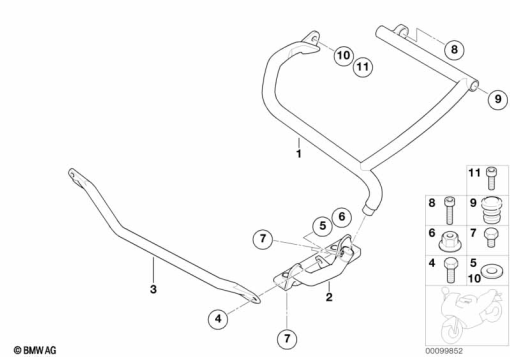

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 668 331 | ENGINE SAFETY BAR, LEFT TOP | - | |
11 11 7 668 332 | ENGINE SAFETY BAR, RIGHT TOPAlternative for position 1 | - | ||
| 2 | 11 11 7 668 333 | ENGINE SAFETY BAR, LEFT BOTTOM | - | |
11 11 7 668 334 | ENGINE SAFETY BAR, RIGHT BOTTOMAlternative for position 2 | - | ||
| 3 | 46 63 7 672 644 | CROSS BRACE | - | |
| 4 | 07 12 9 904 065 | ISA SCREW - M8X20-8.8-ZNS3 | - | |
| 5 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 6 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 7 | 18 12 7 661 044 | SCREW - M6X16 | - | |
| 8 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | - | |
07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8Alternative for position 8 | - | ||
| 9 | 46 52 1 236 522 | 28.66 | - | |
| 10 | 13 51 2 243 795 | WASHER - 18X8,4X3 | - | |
| 11 | 46 63 2 313 246 | FILLISTER-HEAD SCREW - M8X25 | - |
