R1150GS ADV (R21A) | Frame, Fairing, Cases

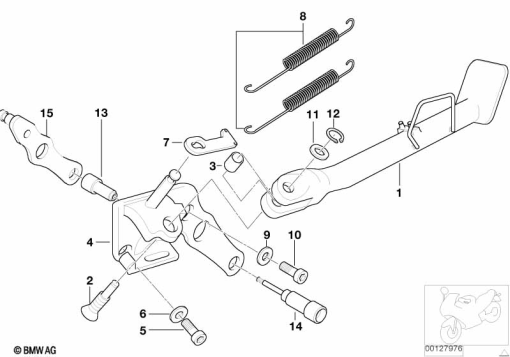

SIDE STAND
Diagram #46_0577 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 7 665 503 | SIDE STAND | 1 | |
| 2 | 46 53 7 653 381 | SIDE-SUPPORT SCREW - M10X1 | 1 | |
| 3 | 46 53 7 663 055 | BUSHING | 1 | |
| 4 | 46 53 7 666 485 | BRACKET LEFT | 1 | |
| 5 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | 1 | |
| 6 | 07 11 9 904 826 | Washer | 1 | |
| 6 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 7 | 46 53 2 335 322 | TENSION SPRING HOLDER | 1 | |
| 8 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 9 | 07 11 9 906 063 | WASHER - 12-200 HV-ZNS3 | 1 | |
| 10 | 07 11 9 900 557 | FILLISTER-HEAD SCREW - M12X30 | 1 | |
| 11 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 12 | 07 11 9 903 479 | LOCK RING - 6X0,7 | 1 |
