R1150GS ADV (R21A) | Frame, Fairing, Cases
LEFT SAFETY BAR, PLASTIC

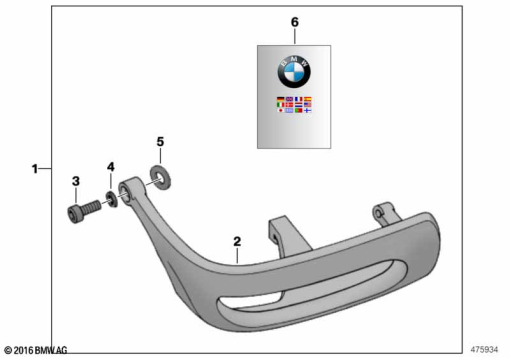

Diagram #46_0578 | 10 parts | 2 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 71 2 316 485 | SAFETY BAR, LEFT (to 12/02) | 1 | |
| 2 | 46 71 2 316 486 | SAFETY BAR, RIGHT (to 12/02) | 1 | |
| 3 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 (to 12/02) | 1 | |
| 3 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV (to 12/02) | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 12/02) | 1 | |
| 4 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (to 12/02) | 1 | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 (to 12/02) | 1 | |
| 6 | 01 29 9 797 366 | INSTALLATION INSTRUCTIONS, SAFETY BAR | 1 |
