Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 7 670 700 | REAR MUFFLER | - | |
| 3 | 18 12 7 661 043 | SCREW - M6X8 | - | |
| 4 | 13 51 2 243 795 | WASHER - 18X8,4X3 | - | |
| 5 | 07 11 9 901 033 | FILLISTER-HEAD SCREW - M8X45-8.8 | - | |
| 6 | 18 12 7 660 999 | BRACKET, 4-HOLE | - | |
| 7 | 18 12 7 670 702 | CAP (from 11/02) | - | |
| - | 18 12 7 670 700 | REAR MUFFLER (from 11/02) | - | |
| 8 | 18 12 7 661 042 | SECURING BOLT - M5X10 | - | |
| 9 | 18 12 1 342 931 | EXHAUST PIPE TIP, FOUR-HOLE | - | |
| - | 18 12 7 661 004 | REAR MUFFLER | - | |
| 9 | 18 12 7 670 701 | EXHAUST PIPE TIP, FOUR-HOLE (from 11/02) | - | |
| - | 18 12 7 670 700 | REAR MUFFLER (from 11/02) | - | |
| 10 | 18 12 7 655 469 | FINISHER WITH CLAMP | - | |
| 11 | 18 21 1 342 283 | RUBBER MOUNTING | - | |
| 12 | 18 21 7 660 998 | SPACER TUBE | - |

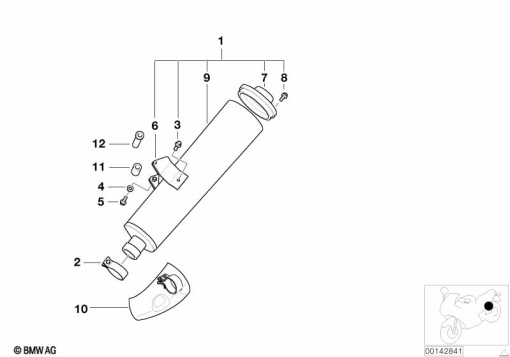

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
