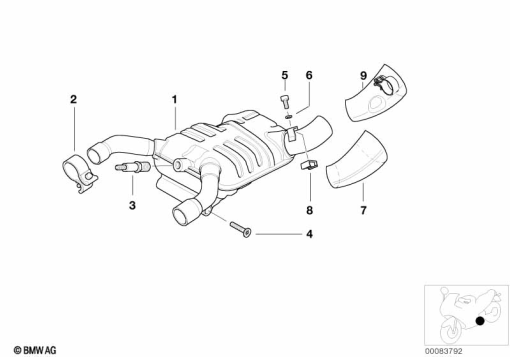

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 7 673 648 | FRONT MUFFLER | - | |
| 2 | 18 11 7 653 274 | CLAMP - D=45 | - | |
| 3 | 11 78 1 341 022 | OXYGEN SENSOR - LSH25,950MM KA. (to 12/02) | - | |
11 78 7 671 756 | OXYGEN SENSOR - NRS, 951MM KA. (from 12/02)Alternative for position 3 | - | ||
| 4 | 18 21 7 654 789 | COUNTERSUNK HEAD SCREW - M8X50 | - | |
| 9 | 18 12 7 655 469 | FINISHER WITH CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
