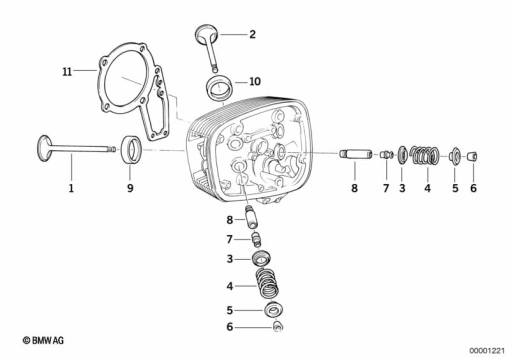

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 1 342 016 | INTAKE VALVE - D=34/5 | - | |
| 2 | 11 34 1 342 017 | EXHAUST VALVE - D=29/5 (to 12/02) | - | |
11 34 7 673 575 | EXHAUST VALVE - D=29/5 (from 12/02)Alternative for position 2 | - | ||
| 3 | 11 34 1 340 919 | SPRING POCKET | - | |
| 4 | 11 34 1 341 514 | VALVE SPRING | - | |
| 5 | 11 34 1 342 971 | UPPER SPRING PLATE - D=5 | - | |
| 6 | 11 34 1 340 846 | VALVE COLLET - D=5 | - | |
| 7 | 11 34 1 340 849 | VALVE SEAL RING - D=5 | - | |
| 8 | 11 12 1 340 838 | VALVE GUIDE INLET - D=12,7/D=5MM | - | |
11 12 1 340 843 | VALVE GUIDE EXHAUST - D=12,7/D=5MMAlternative for position 8 | - | ||
| 9 | 11 12 1 342 450 | VALVE SEAT RING INTAKE | - | |
| 10 | 11 12 1 342 459 | VALVE SEAT RING EXHAUST | - | |
| 11 | 11 12 1 342 394 | CYL. HEAD GASKET, 3 COMPONENTS (to 12/02) | - | |
11 12 7 672 598 | CYL. HEAD GASKET, 3 COMPONENTS (from 12/02)Alternative for position 11 | - |
