R1150GS ADV (R21A) | Engine

PISTON, SINGLE COMPONENTS

Diagram #11_2813 | 4 parts

100%

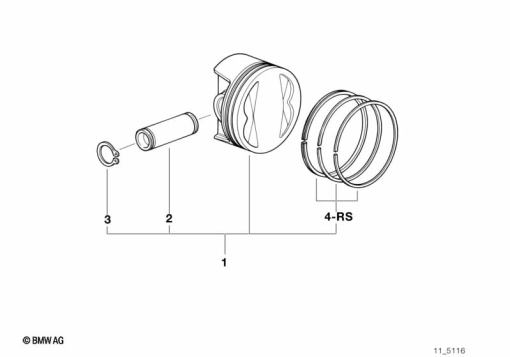

R1150GS ADV (R21A) PISTON, SINGLE COMPONENTS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 25 7 652 663
PISTON, ANTI-BLUESMOKE - AB+584-594GR1
2
11 25 1 341 365
GUDGEON PIN1
3
11 25 1 335 476
LOCK RING - A22X1.751
4
11 25 7 652 848
SET: REPAIR KIT PISTON RINGS - D=1011
