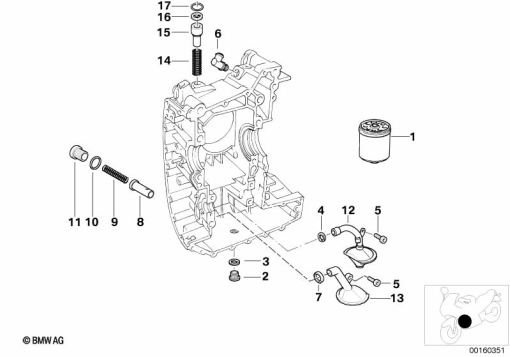

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 1 460 845 | OIL FILTER | - | |
| 2 | 07 11 9 902 292 | SCREW PLUG - M16X1,5 | - | |
| 3 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 4 | 11 41 1 341 597 | O-RING - 22X2,50 | - | |
| 5 | 07 11 9 901 988 | FILLISTER-HEAD SCREW - M6X25-Z2 | - | |
07 12 9 906 803 | ISA SCREW WITH WASHER - M6X25-U2-8.8Alternative for position 5 | - | ||
| 6 | 11 11 1 341 276 | VENT PIPE | - | |
| 7 | 11 41 1 342 499 | O-RING - 20X2,5 | - | |
| 8 | 11 41 1 340 780 | PISTON | - | |
| 9 | 11 41 1 460 259 | COMPRESSION SPRING | - | |
| 10 | 07 11 9 963 342 | GASKET RING - A20X24-CU | - | |
| 11 | 11 41 1 460 483 | SCREW PLUG | - | |
| 12 | 11 41 1 342 500 | SUCTION TUBE LUBRICATING OIL | - | |
| 13 | 11 41 1 342 606 | INTAKE MANIFOLD, COOLING | - | |
| 14 | 11 44 1 342 571 | COMPRESSION SPRING | - | |
| 15 | 11 41 1 342 761 | THERMOSTAT - 95CEL | - | |
| 16 | 11 44 1 341 041 | BASE | - | |
| 17 | 17 22 1 342 487 | O-RING - 19X4 | - |
