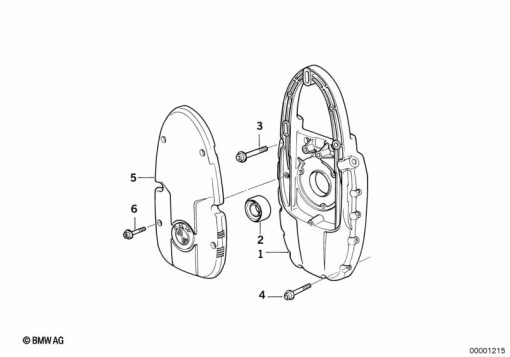

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 341 893 | SILVER ALTERNATOR SUPPORT COVER | 1 | |
| 1 | 11 11 1 341 895 | BLACK ALTERNATOR SUPPORT COVER | 1 | |
| 2 | 11 11 1 341 357 | SHAFT SEAL - 30X42X7 | 1 | |
| 3 | 07 12 9 904 835 | ISA SCREW - M8X30-U1-8.8 | 1 | |
| 4 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | 1 | |
| 5 | 11 11 7 685 327 | COVERING WITH BADGE - CHROME | 1 | |
| 5 | 11 14 7 678 717 | COVER, BLACK | 1 | |
| 5 | 71 60 7 664 236 | HP CARBON BELT COVER | 1 | |
| 6 | 07 12 9 905 121 | ISA SCREW - M5X20-U1-8.8 | 1 |
