R1150GS ADV (R21A) | Engine Electrics
SWITCH / SENSORS

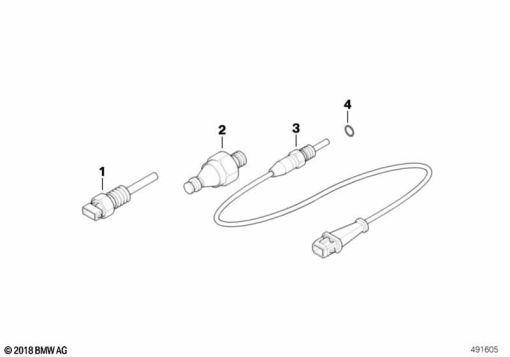

Diagram #12_2333 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 62 1 465 108 | INTAKE AIR TEMPERATURE SENSOR | 1 | |
| 2 | 11 41 1 342 807 | OIL PRESSURE SWITCH - 0,15 BAR (to 12/02) | 1 | |
| 1 | 07 11 9 963 252 | GASKET RING - A16X20-AL (to 12/02) | 1 | |
| 2 | 12 61 8 611 273 | OIL PRESSURE SWITCH - M12X1,5 (from 10/02) | 1 | |
| 3 | 12 61 1 341 602 | OIL TEMPERATURE SENSOR | 1 | |
| 4 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 |
