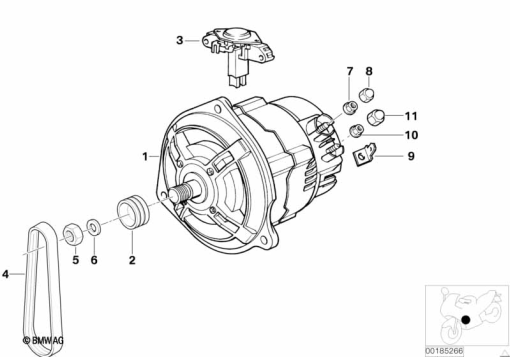

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 2 306 020 | ALTERNATOR - 50A | 1 | |
| 2 | 12 31 1 342 075 | PULLEY ALTERNATOR - D=58,7MM (to 07/03) | 1 | |
| 2 | 12 31 1 342 075 | PULLEY ALTERNATOR - D=58,7MM (from 07/03) | 1 | |
| 1 | 12 31 1 341 779 | RIBBED V-BELT - 4PK611 (from 07/03) | 1 | |
| 3 | 12 31 1 739 365 | VOLTAGE REGULATOR | 1 | |
| 4 | 12 31 1 341 779 | RIBBED V-BELT - 4PK611 (to 07/03) | 1 | |
| 4 | 12315A95696 | RIBBED V-BELT - 4PK611 (to 07/03) | 1 | |
| 4 | 12 31 7 681 841 | RIBBED V-BELT - 4PK592 (from 07/03) | 1 | |
| 4 | 12315A95697 | RIBBED V-BELT - 4PK592 (from 07/03) | 1 | |
| – | 12 31 7 678 716 | PULLEY WITH FREE WHEEL - D=57,3MM (from 07/03) | 1 | |
| 5 | 12 31 1 459 814 | HEX NUT - M16X1,5 | 1 | |
| 6 | 07 11 9 906 046 | WASHER - 16-200-HV-ZNS3 | 1 | |
| 7 | 07 14 9 125 856 | HEX NUT - M8 | 1 | |
| 8 | 46 51 1 234 785 | PROTECTION CAP - M8 | 1 | |
| 9 | 12 31 2 306 358 | FLAT-TYPE CONNECTOR | 1 | |
| 10 | 07 14 1 732 625 | FLANGE NUT - M5 | 1 | |
| 11 | 12 31 2 306 324 | CAP - M5 | 1 |
