R1100GS (259E) | Rear Axle & Suspension
SPRING STRUT, REAR

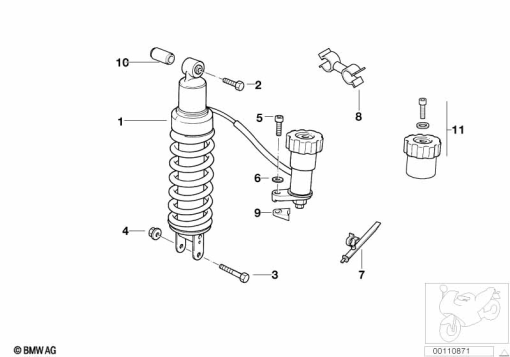

Diagram #33_0675 | 10 parts | 2 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 312 103 | SPRING STRUT, REAR | 1 | |
| 2 | 33 53 7 676 637 | ASA-BOLT - M10X1,25X60 | 1 | |
| 3 | 33 53 2 330 374 | HEX BOLT - M10X1,25X65 | 1 | |
| 4 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 5 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | 1 | |
| 6 | 07 11 9 904 826 | Washer | 1 | |
| 6 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 7 | 13 31 1 707 705 | HOSE CLAMP | 1 | |
| 10 | 33 53 2 331 785 | RUBBER MOUNTING | 1 | |
| 11 | 33 53 2 345 489 | HANDWHEEL FOR SPRING STRUT ADJUSTMENT | 1 |
