R1100GS (259E) | Instruments Dash
DRIVERS INFORMATION DISPLAY

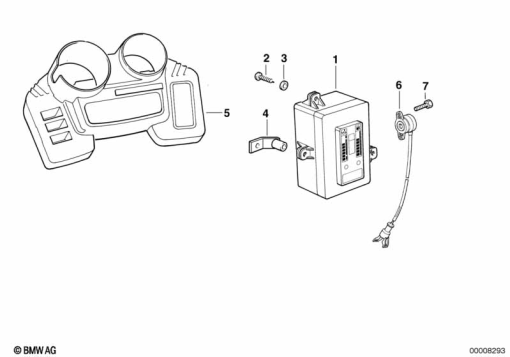

Diagram #62_0258 | 7 parts | 1 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 13 2 350 607 | DRIVERS INFORMATION DISPLAY - 5+E | 1 | |
| 2 | 63 13 2 306 499 | SCREW - 3,5X12 | 1 | |
| 3 | 07 11 9 932 013 | WAVE WASHER - B3 | 1 | |
| 4 | 62 21 2 306 522 | SPACER | 1 | |
| 5 | 62 21 2 306 529 | INSTRUMENT CARRIER /INFORMATION DISPLAY - FID | 1 | |
| 6 | 61 31 2 306 519 | GEAR POSITION INDICATOR SWITCH | 1 | |
| 7 | 07 11 9 913 097 | HEX BOLT - M4X25 8.8ZN | 1 |
