R1100GS (259E) | Instruments Dash

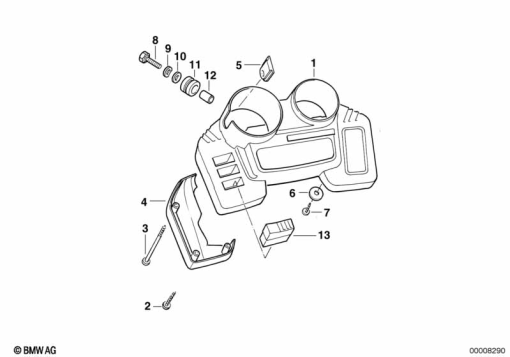

DASHBOARD MOUNTING PARTS
Diagram #62_0255 | 15 parts | 1 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 21 2 306 472 | DASHBOARD SUPPORT | 1 | |
| 1 | 62 21 2 306 529 | INSTRUMENT CARRIER /INFORMATION DISPLAY - FID | 1 | |
| 2 | 62 14 1 244 766 | SCREW - 3,5X20 | 1 | |
| 3 | 62 11 1 459 896 | FILLISTER HEAD SELF-TAPPING SCREW - 3,5X38 MM | 1 | |
| 4 | 62 21 2 306 497 | COVER LEFT | 1 | |
| 4 | 62 21 2 306 498 | COVER RIGHT | 1 | |
| 5 | 61 21 2 306 320 | GROMMET | 1 | |
| 6 | 65 13 2 225 757 | WASHER | 1 | |
| 7 | 07 14 9 149 273 | FILLISTER HEAD SCREW - 5X14 | 1 | |
| 8 | 07 11 9 913 101 | HEX BOLT - M6X30 | 1 | |
| 9 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 10/83) | 1 | |
| 10 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 11 | 31 42 1 235 615 | RUBBER GROMMET | 1 | |
| 12 | 31 42 1 232 242 | BUSH | 1 | |
| 13 | 32 71 1 459 318 | COVERING CAP | 1 |
