R1100GS (259E) | Front Suspension

UPPER FORK CROSS BRACE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0347 | 14 parts

100%

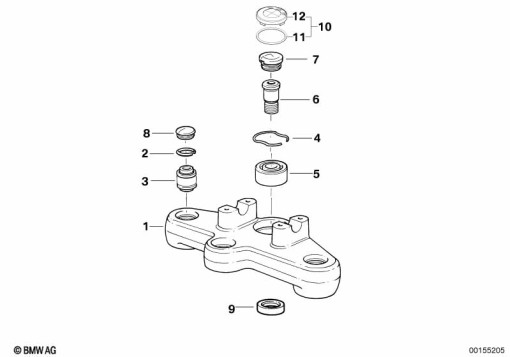

R1100GS (259E) UPPER FORK CROSS BRACE exploded view parts diagram

Parts List (14)

#	Part Number	Description	Qty
1	31 42 2 314 505	UPPER FORK CROSS BRACE WITH MOUNT	-
2	07 11 9 902 380	LOCK RING	-
	31 42 2 331 942	SNAP RING - 26X1,2Alternative for position 2	-
3	31 42 8 545 296	JOINT LINK	-
4	31 42 2 311 989	LOCK RING	-
5	31 42 2 314 723	ANGULAR BALL BEARING - 47X20X20,6	-
6	31 42 2 314 131	BOLT	-
7	31 42 2 314 132	COVERING CAP	-
8	31 42 2 314 133	COVERING CAP	-
	31 42 7 708 547	SET: SET OF CAPS, MILLEDAlternative for position 8	-
9	31 42 2 314 128	SUPPORT - 28X20X7	-
11	07 11 9 909 724	O-RING - 40X3,5-N-EPDM70	-
	07 11 9 909 724	O-RINGAlternative for position 11	-
12	31 42 7 708 518	BADGE - D=45MM	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
