R1100GS (259E) | Front Suspension

FORK SLIDER/LOWER FORK BRIDGE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0338 | 15 parts

100%

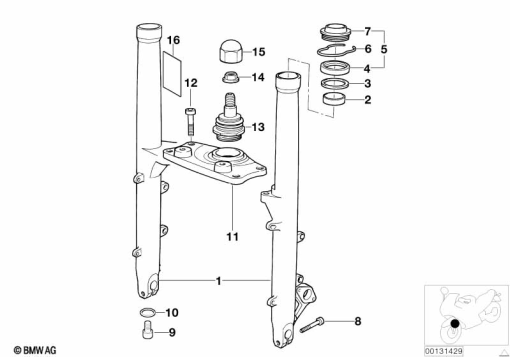

R1100GS (259E) FORK SLIDER/LOWER FORK BRIDGE exploded view parts diagram

Parts List (15)

#	Part Number	Description	Qty
1	31 42 2 311 981	SLIDER TUBE LEFT	-
	31 42 2 311 982	SLIDER TUBE RIGHTAlternative for position 1	-
2	31 42 2 311 986	BUSH	-
3	31 42 2 314 630	SHIM	-
4	31 42 2 311 988	SHAFT SEAL	-
6	31 42 2 311 989	LOCK RING	-
7	31 42 2 311 980	DUST CAP	-
8	31 42 2 312 035	FILLISTER-HEAD SCREW - M8X40-8.8-SW	-
9	31 42 2 312 711	FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3	-
10	31 42 2 312 714	O-RING	-
11	31 42 2 320 047	LOWER FORK CROSS BRACE	-
12	31 42 2 312 034	FILLISTER-HEAD SCREW - M8X35-8.8-SW	-
13	31 42 2 311 409	BALL JOINT	-
14	31 42 2 330 996	COLLAR NUT - M14X1,5 MK	-
15	31 42 7 658 697	COVER, BLACK	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
