R1100GS (259E) | Front Suspension

TRAILING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0336 | 10 parts

100%

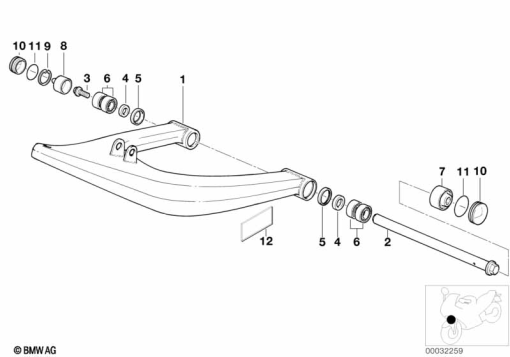

R1100GS (259E) TRAILING ARM exploded view parts diagram

Parts List (10)

#	Part Number	Description	Qty
1	31 42 2 345 526	BLACK TRAILING ARM	-
2	31 42 2 314 501	AXLE	-
3	07 11 9 900 029	HEX BOLT - M12X20-8.8-ZN	-
4	31 42 2 314 058	SPACER	-
5	31 42 2 314 426	SHAFT SEAL	-
6	31 42 2 314 724	GROOVED BALL BEARING - 17X40X12	-
8	31 42 2 314 303	CAP RIGHT	-
9	07 11 9 905 077	LOCK RING - 42X1,75	-
10	31 42 2 314 304	COVERING CAP	-
11	31 42 2 314 981	O-RING	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
