R1100GS (259E) | Front Suspension

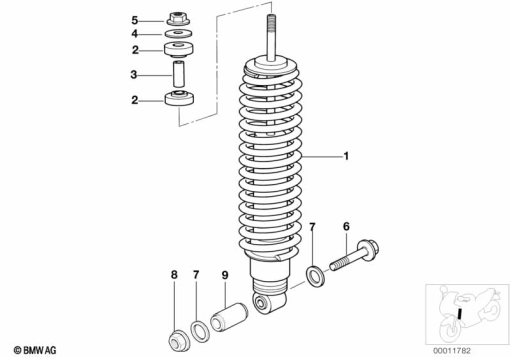

SPRING STRUT, FRONT
Diagram #31_0335 | 9 parts | 1 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 312 102 | SPRING STRUT, FRONT | 1 | |
| 2 | 31 42 2 311 994 | BUSH | 1 | |
| 3 | 31 42 2 311 993 | PIPE | 1 | |
| 4 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | 1 | |
| 4 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | 1 | |
| 5 | 07 11 9 906 226 | HEX NUT - M10X1,25-ZNS3 | 1 | |
| 6 | 33 54 8 523 427 | HEXAGON SCREW WITH FLANGE - M10X1,25X48 | 1 | |
| 8 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 9 | 31 42 2 331 784 | RUBBER MOUNTING | 1 |
