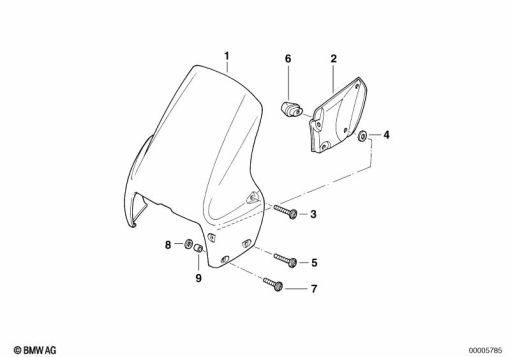

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 257 | WINDSHIELD, CLEAR | - | |
46 63 2 313 258 | WINDSHIELD, BROWN/TINTEDAlternative for position 1 | - | ||
| 2 | 46 63 2 313 601 | BRACKET LEFT | - | |
46 63 2 313 602 | BRACKET RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 2 351 500 | FILLISTER HEAD SCREW - M5X12 | - | |
| 4 | 46 63 2 313 611 | RUBBER WASHER | - | |
| 5 | 46 63 2 351 519 | FILLISTER HEAD SCREW - M6X35 | - | |
| 6 | 46 63 2 451 255 | CLAMPING | - | |
| 8 | 07 11 9 904 427 | WASHER - 6-200 | - | |
| 9 | 16 11 1 450 706 | SPACER BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
