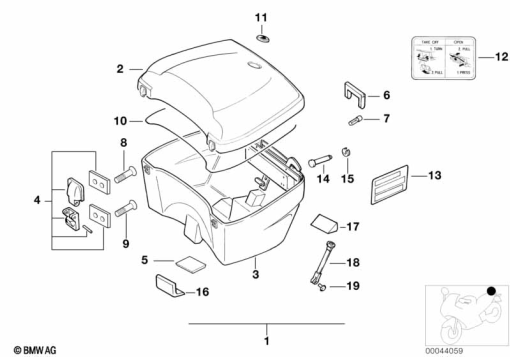

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 287 | TOP CASE WITH LOCK CYLINDER - 35L | - | |
46 54 2 316 645 | SET: RETROFIT KIT, TOP CASE BRACKET - 35 LTR.Alternative for position 1 | - | ||
| - | 51 25 1 233 898 | STANDARD KEY (CODE) | - | |
| - | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 2 | 46 54 2 316 288 | COVER BLACK | - | |
| 3 | 46 54 2 315 613 | BOTTOM PART | - | |
| 4 | 71 60 7 651 217 | HINGE TOP CASE | - | |
| 5 | 46 54 2 316 319 | BUMP STOP | - | |
| 6 | 46 54 2 315 616 | HANDLE | - | |
| 7 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 8 | 07 11 9 910 348 | COUNTERSUNK HEAD SCREW - M5X16 | - | |
| 9 | 07 11 9 910 350 | COUNTERSUNK HEAD SCREW - M6X16 | - | |
| 10 | 46 54 2 316 314 | GASKET | - | |
| 11 | 46 54 2 300 045 | BADGE | - | |
| 12 | 46 54 2 315 908 | LABEL | - | |
| 13 | 71 21 2 312 802 | HINWHITECHILD ZULADUNG SITZPLÄTZE | - | |
| 14 | 46 54 2 316 317 | 0.01 | - | |
| 15 | 07 11 9 932 815 | CIRCLIP - 3,2 | - | |
12 11 8 030 576 | CIRCLIPAlternative for position 15 | - | ||
| 16 | 46 54 2 316 457 | SET: DISTANCE RUBBER | - | |
| 17 | 46 54 2 316 315 | STOPPER | - | |
| 18 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | - | |
| 19 | 51 16 1 828 956 | 0.01 | - |
