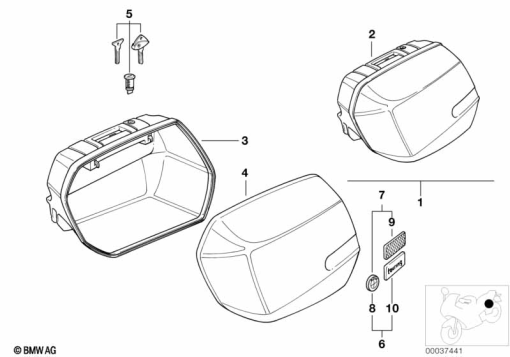

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 54 2 316 714 | RIGHT SYSTEM CASE - BLACK/POLIERT | - | |
46 54 2 317 623 | SYSTEM CASE LEFT WITHOUT CYLINDER - 25LAlternative for position 2 | - | ||
46 54 7 660 300 | SYSTEM CASE RIGHT WITHOUT CYLINDER - 31LAlternative for position 2 | - | ||
| 3 | 46 54 2 317 620 | BOTTOM PART RGHT WITHOUT MULTIFUNCT.BOX | - | |
46 54 2 317 625 | BOTTOM PART LEFT WITHOUT MULTIFUNCT.BOXAlternative for position 3 | - | ||
| 4 | 46 54 2 317 615 | COVER LEFT - BLACK/GENARBT | - | |
46 54 2 317 616 | COVER RIGHT - BLACK/GENARBTAlternative for position 4 | - | ||
71 60 7 652 735 | LID, LEFT, LARGE, FOR SYSTEM CASE - CA.6LAlternative for position 4 | - | ||
| - | 71 60 7 657 481 | IMPACT PROTECTION, LARGE LEFT | - | |
| - | 63 14 8 529 372 | REAR REFLECTOR RED | - | |
| - | 46 54 2 300 045 | BADGE | - | |
| - | 46 54 2 300 134 | REAR REFLECTOR YELLOW | - | |
| 4 | 71 60 7 652 736 | LID, RIGHT, LARGE, FOR SYSTEM CASE - CA.6L | - | |
| - | 71 60 7 657 482 | IMPACT PROTECTION, LARGE RIGHT | - | |
| - | 63 14 8 529 372 | REAR REFLECTOR RED | - | |
| - | 46 54 2 300 045 | BADGE | - | |
| - | 46 54 2 300 134 | REAR REFLECTOR YELLOW | - | |
| 5 | 51 25 2 307 617 | SET: SET OF SUITCASE LOCKS WITH CODE | - | |
51 25 2 307 618 | SET: SET OF SUITCASE LOCKSAlternative for position 5 | - | ||
| 6 | 46 54 9 056 968 | SET: INSTALLING SIDE MARKING LIGHT - TOURING | - | |
| 7 | 46 54 9 056 970 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | - | |
46 54 9 056 969 | SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 7 | - | ||
| 8 | 46 54 2 300 045 | BADGE | - | |
| 9 | 46 54 2 300 134 | REAR REFLECTOR YELLOW | - | |
63 14 8 529 372 | REAR REFLECTOR REDAlternative for position 9 | - | ||
| 10 | 46 54 2 300 046 | EMBLEM - TOURING | - |
