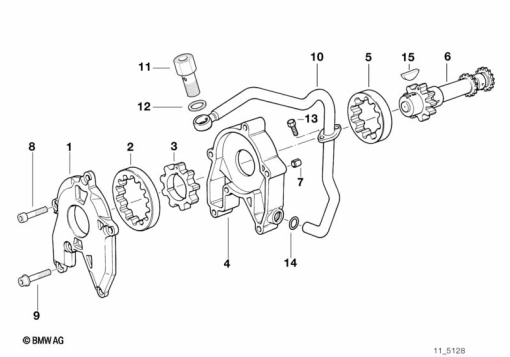

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 1 341 124 | OIL PUMP COVER (from 12/97) | - | |
| 2 | 11 41 1 342 630 | EXTERIOR ROTOR, COOLING OIL (from 12/97) | - | |
| 3 | 11 41 1 342 631 | INTERIOR ROTOR, COOLING OIL (from 12/97) | - | |
| 4 | 11 41 1 341 039 | OIL PUMP HOUSING (from 12/97) | - | |
| 5 | 11 41 1 340 137 | EXTERIOR ROTOR (from 12/97) | - | |
| 6 | 11 31 1 341 118 | AUXILIARY SHAFT (from 12/97) | - | |
| 7 | 11 12 1 726 242 | DOWEL - D=8,5X9MM (from 12/97) | - | |
| 8 | 07 11 9 920 023 | FILLISTER-HEAD SCREW - M6X45 (from 12/97) | - | |
| 9 | 07 11 9 900 208 | FILLISTER HEAD WITH WASHER - M6X50-Z3-8.8 (from 12/97) | - | |
| 10 | 11 51 1 342 710 | COOLING OIL LINE (from 12/97) | - | |
| 11 | 11 51 1 342 248 | VENT SCREW (from 12/97) | - | |
| 12 | 07 11 9 963 200 | GASKET RING - A14X18-AL (from 12/97) | - | |
| 13 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 14 | 11 51 1 340 738 | O-RING (from 12/97) | - | |
| 15 | 07 11 9 951 430 | WOODRUFF KEY - 3X3,7 (from 12/97) | - |
