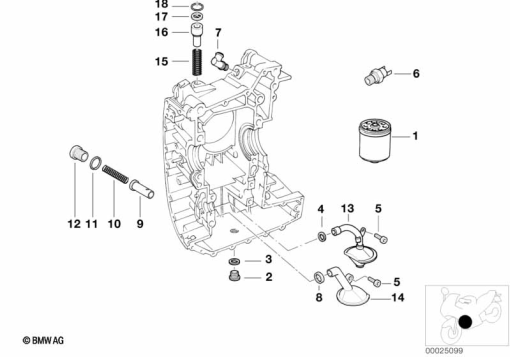

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 1 460 845 | OIL FILTER (from 12/97) | - | |
11 00 1 341 616 | REPAIR KIT FOR OIL CHANGEAlternative for position 1 | - | ||
| 2 | 07 11 9 902 292 | SCREW PLUG - M16X1,5 (from 12/97) | - | |
| 3 | 07 11 9 963 252 | GASKET RING - A16X20-AL (from 12/97) | - | |
| 4 | 11 41 1 341 597 | O-RING - 22X2,50 | - | |
| 5 | 07 11 9 900 635 | FILLISTER-HEAD SCREW - M6X20-Z2 (from 12/97) | - | |
07 11 9 901 988 | FILLISTER-HEAD SCREW - M6X25-Z2 (from 12/97)Alternative for position 5 | - | ||
| 6 | 17 21 1 342 174 | TEMPERATURE SWITCH (from 12/97) | - | |
| 7 | 11 11 1 341 276 | VENT PIPE (from 12/97) | - | |
| 8 | 11 41 1 342 499 | O-RING - 20X2,5 (from 12/97) | - | |
| 9 | 11 41 1 340 780 | PISTON (from 12/97) | - | |
| 10 | 11 41 1 460 259 | COMPRESSION SPRING (from 12/97) | - | |
| 11 | 07 11 9 963 342 | GASKET RING - A20X24-CU (from 12/97) | - | |
| 12 | 11 41 1 460 483 | SCREW PLUG (from 12/97) | - | |
| 13 | 11 41 1 342 500 | SUCTION TUBE LUBRICATING OIL (from 12/97) | - | |
| 14 | 11 41 1 342 606 | INTAKE MANIFOLD, COOLING (from 12/97) | - | |
| 15 | 11 44 1 342 571 | COMPRESSION SPRING (from 12/97) | - | |
| 16 | 11 41 1 342 761 | THERMOSTAT - 95CEL (from 12/97) | - | |
| 17 | 11 44 1 341 041 | BASE (from 12/97) | - | |
| 18 | 17 22 1 342 487 | O-RING - 19X4 (from 12/97) | - |
