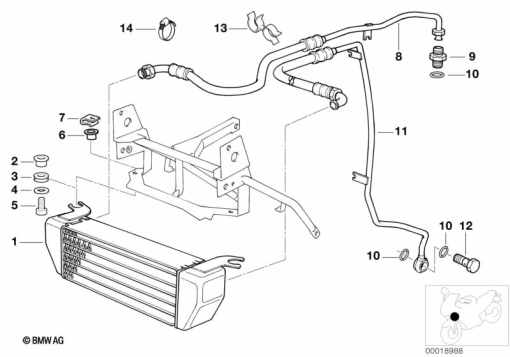

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 1 341 980 | OIL COOLER (to 06/97) | 1 | |
| 1 | 17 21 2 325 525 | OIL COOLER (06/97 to 12/97) | 1 | |
| 2 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 (to 12/97) | 1 | |
| 3 | 46 63 1 451 277 | RUBBER GROMMET (to 12/97) | 1 | |
| 4 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 (to 12/97) | 1 | |
| 5 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 (to 12/97) | 1 | |
| 6 | 46 63 1 455 425 | NUT HOLDER (to 12/97) | 1 | |
| 7 | 07 12 9 904 886 | CAGE NUT - M6-6-ZNS3 (to 12/97) | 1 | |
| 8 | 17 31 1 341 416 | OIL PIPE INLET (to 06/97) | 1 | |
| 8 | 17 22 2 325 526 | OIL PIPE INLET (06/97 to 12/97) | 1 | |
| 9 | 07 11 9 964 535 | THREADED PIPE JOINT (to 12/97) | 1 | |
| 10 | 07 11 9 963 252 | GASKET RING - A16X20-AL (to 12/97) | 1 | |
| 11 | 17 22 1 341 871 | SILVER OIL PIPE OUTLET (to 06/97) | 1 | |
| 11 | 17 22 1 341 872 | BLACK OIL PIPE OUTLET (to 06/97) | 1 | |
| 11 | 17 22 2 325 714 | SILVER OIL PIPE OUTLET (06/97 to 12/97) | 1 | |
| 11 | 17 22 2 325 715 | BLACK OIL PIPE OUTLET (06/97 to 12/97) | 1 | |
| 13 | 17 22 1 341 603 | HOSE CLAMP - D=18/20 (to 12/97) | 1 | |
| 14 | 07 12 9 952 107 | HOSE CLAMP - L15-19 (06/97 to 12/97) | 1 | |
| 14 | 17 22 1 342 708 | CLAMP - FBS 19/12 (06/97 to 12/97) | 1 |
