Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 1 460 845 | OIL FILTER (to 12/97) | - | |
11 00 1 341 616 | REPAIR KIT FOR OIL CHANGEAlternative for position 1 | - | ||
| 2 | 07 11 9 902 292 | SCREW PLUG - M16X1,5 (to 12/97) | - | |
| 3 | 07 11 9 963 252 | GASKET RING - A16X20-AL (to 12/97) | - | |
| 4 | 11 41 1 341 597 | O-RING - 22X2,50 (to 12/97) | - | |
| 5 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV (to 12/97) | - | |
| 6 | 11 41 1 340 762 | OIL PUMP STRAINER (to 12/97) | - | |
| 7 | 11 11 1 341 276 | VENT PIPE (to 12/97) | - | |
| 9 | 11 41 1 340 780 | PISTON (to 12/97) | - | |
| 10 | 11 41 1 460 259 | COMPRESSION SPRING (to 12/97) | - | |
| 11 | 07 11 9 963 342 | GASKET RING - A20X24-CU (to 12/97) | - | |
| 12 | 11 41 1 460 483 | SCREW PLUG (to 12/97) | - |

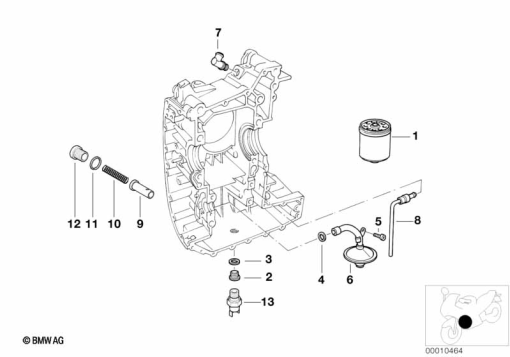

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
