R1100GS (259E) | Engine Electrics

STARTER SINGLE PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

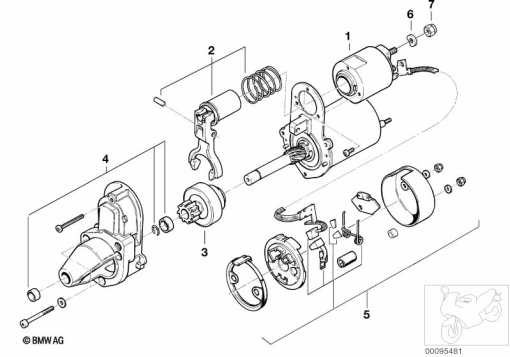

Diagram #12_1173 | 17 parts

100%

Parts List (17)

#	Part Number	Description	Qty
1	12 41 2 306 168	SOLENOID SWITCH	-
-	12 41 2 306 700	STARTER	-
-	12 41 2 306 700R	NIPPONDENSO REPLACEMENT STARTER	-
2	12 41 2 306 169	CLUTCH REL.FORK LEVER	-
-	12 41 2 306 700	STARTER	-
-	12 41 2 306 700R	NIPPONDENSO REPLACEMENT STARTER	-
3	12 41 2 306 239	STARTER PINION	-
-	12 41 2 306 700	STARTER	-
-	12 41 2 306 700R	NIPPONDENSO REPLACEMENT STARTER	-
4	12 41 1 244 611	SET: REPAIR KIT FOR STARTER	-
-	12 41 2 306 700	STARTER	-
-	12 41 2 306 700R	NIPPONDENSO REPLACEMENT STARTER	-
5	61 31 2 306 015	SET: CARBON BRUSH SET	-
-	12 41 2 306 700	STARTER	-
-	12 41 2 306 700R	NIPPONDENSO REPLACEMENT STARTER	-
6	12 41 1 244 623	SPRING WASHER	-
7	12 41 1 244 622	HEX NUT - M8-8 CU	-
