R1100GS (259E) | Engine Electrics

IGNITION SYSTEM/TRIGGER CONTACT

Diagram #12_1013 | 8 parts

100%

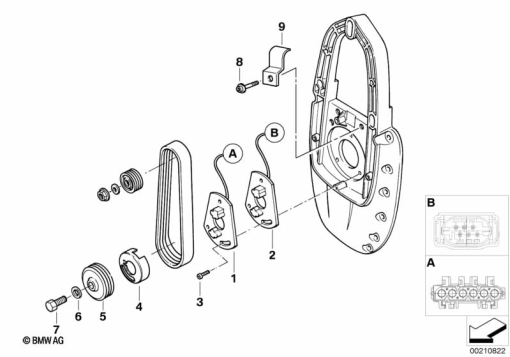

R1100GS (259E) IGNITION SYSTEM/TRIGGER CONTACT exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
12 11 2 306 137
IGNITION SENSOR-
3
07 12 9 905 119
ISA SCREW - M5X8-
4
12 14 1 342 853
ROTOR-
5
12 31 1 341 912
PULLEY, CRANKSHAFT-
6
11 31 1 341 572
WASHER-
7
07 11 9 900 545
HEX BOLT - M10X35-
8
07 12 9 905 537
ISA SCREW WITH WASHER - M6X30-U0-8.8-
9
12 11 1 341 535
HOLDER-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
