R1100GS (259E) | Engine Electrics

COVER FOR STARTER

Diagram #12_0766 | 8 parts

100%

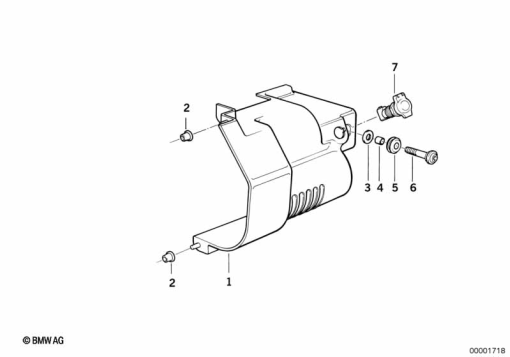

R1100GS (259E) COVER FOR STARTER exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
11 14 1 341 812
COVER, BLACK-
11 14 1 342 000
COVER, SILVERAlternative for position 1-
2
11 14 1 341 249
RUBBER GROMMET-
4
63 12 7 727 887
COLLAR BUSH - 18X6,1X8-ZNNIV-
5
11 14 1 341 250
RUBBER GROMMET-
6
18 22 1 464 332
FILLISTER HEAD SCREW-
11 14 2 351 508
FILLISTER HEAD SCREWAlternative for position 6-
7
61 13 1 391 630
PLUG-IN SOCKET-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
