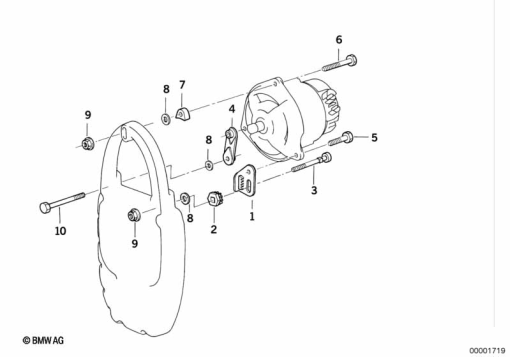

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 1 340 930 | ADJUSTING BAR | 1 | |
| 2 | 12 31 7 677 914 | IDLER | 1 | |
| 3 | 12 31 1 340 931 | SCREW | 1 | |
| 4 | 12 31 1 340 932 | SUPPORT SHACKLE | 1 | |
| 5 | 17 11 1 723 673 | HEX BOLT - M8X20-Z1-8.8 | 1 | |
| 6 | 07 11 9 905 401 | HEX BOLT WITH WASHER - M8X65-U1 | 1 | |
| 7 | 12 31 1 340 933 | SPACER | 1 | |
| 8 | 32 41 1 251 265 | SHIM - 1,0MM | 1 | |
| 9 | 07 11 9 904 024 | HEX NUT - M8-ZNS3 | 1 | |
| 10 | 07 11 9 902 683 | HEX BOLT - M8X50 | 1 |
