R1100GS (259E) | Electrical System

VARIOUS SWITCHES

Diagram #61_0268 | 17 parts

100%

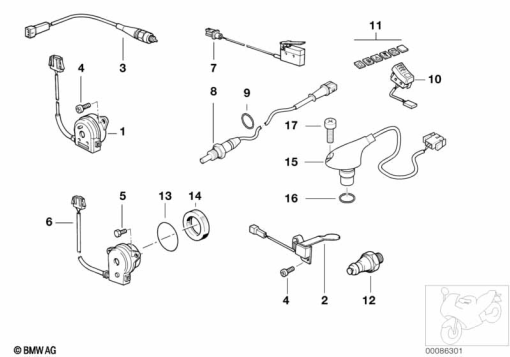

R1100GS (259E) VARIOUS SWITCHES exploded view parts diagram

Parts List (17)

#Part NumberDescriptionQty
1
61 31 2 306 060
SWITCH, KICKSTAND (to 02/96)-
46 52 2 325 381
BRACKET LEFT (to 02/96)Alternative for position 1-
61 31 2 306 060
SWITCH, KICKSTAND (from 02/96)Alternative for position 1-
3
61 31 1 459 569
SWITCH-
5
07 11 9 901 996
HEX BOLT - M4X12-8.8-ZNFE-
6
61 31 2 306 202
IDLE SWITCH-
-
23 31 1 340 363
SHAFT SEAL - 10X22X6-
-
23 31 1 341 836
O-RING - 27,5X2-
7
61 31 1 459 870
FRONT STOP LIGHT SWITCH-
10
61 31 1 459 982
SWITCH HANDLE HEATED - L=210MM-
61 31 2 306 501
SWITCH ABSAlternative for position 10-
61 31 2 306 503
HAZARD WARNING SWITCHAlternative for position 10-
11
61 31 1 244 709
SYMBOL HAZZARD WARNING-
61 31 1 459 360
SYMBOL HANDLE HEATETAlternative for position 11-
61 31 2 306 502
ANTI BLOCK SYSTEM SYMBOLAlternative for position 11-
13
23 31 1 341 836
O-RING - 27,5X2-
14
23 31 1 340 363
SHAFT SEAL - 10X22X6-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
