Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 61 21 1 459 655 | HEX BOLT - M6X20 | - | |
| - | 61 21 0 403 224 | BATTERY | - | |
| 3 | 61 21 1 459 657 | WASHER - A6,4 | - | |
| 4 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 5 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 6 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
61 21 2 306 488 | COVER, POSITIVEAlternative for position 6 | - | ||
| 8 | 61 21 1 459 106 | BLIND PLUG | - | |
| 9 | 61 21 1 459 743 | HOSE CONNECTOR | - | |
| 10 | 61 21 2 306 299 | HOSE - 1000 MM | - | |
| 11 | 51 14 1 459 229 | LABEL "BATTERY" - 30AH | - | |
| 12 | 61 21 2 306 620 | EXTENSION - MINUSPOL | - | |
| 14 | 61 21 9 056 971 | BATTERY ACID PARCEL (6 BOTTLES) - 15AH-20AH | - |

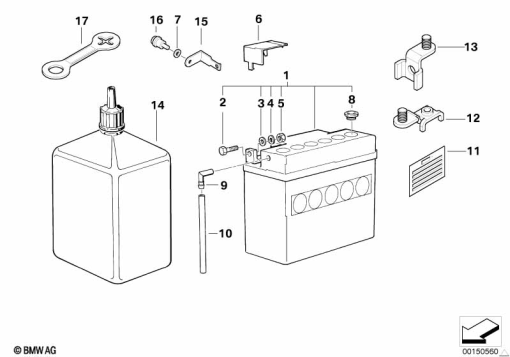

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
