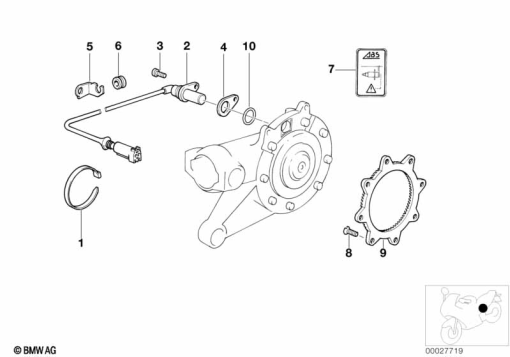

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 2 | 34 52 2 331 286 | PULSE GENERATOR | - | |
| 3 | 34 51 1 458 494 | FILLISTER-HEAD SCREW - M5X14 | - | |
| 4 | 34 51 2 314 852 | SHIM - 0,050MM | - | |
34 51 2 314 853 | SHIM - 0,100MMAlternative for position 4 | - | ||
34 51 2 314 854 | SHIM - 0,200MMAlternative for position 4 | - | ||
34 51 2 314 855 | SHIM - 0,300MMAlternative for position 4 | - | ||
34 51 2 314 856 | SHIM - 0,400MMAlternative for position 4 | - | ||
34 51 2 314 857 | SHIM - 0,500MMAlternative for position 4 | - | ||
34 51 2 314 858 | SHIM - 1,000MMAlternative for position 4 | - | ||
34 51 2 351 536 | SHIM - 0,070MMAlternative for position 4 | - | ||
| 5 | 34 51 2 311 021 | BRACKET | - | |
| 6 | 34 52 2 305 087 | RUBBER GROMMET | - | |
| 7 | 71 21 2 314 920 | LABEL - ABS | - | |
| 8 | 34 51 2 314 936 | COUNTERSUNK HEAD SCREW - M5X12 | - | |
| 9 | 34 51 2 314 169 | SENSOR RING | - | |
| 10 | 12 14 1 727 220 | O-RING - 18X2 | - |
