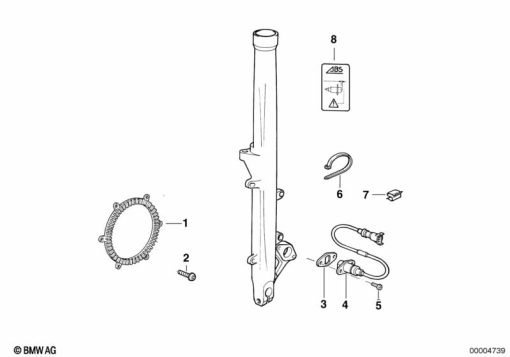

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 2 314 784 | FRONT ABS SENSOR RING | - | |
| 2 | 07 14 7 120 342 | FILLISTER HEAD SCREW - M5X10 | - | |
| 3 | 34 51 2 310 340 | SHIM - 0,050MM | - | |
34 51 1 458 406 | SHIM - 0,100MMAlternative for position 3 | - | ||
34 51 1 458 407 | SHIM - 0,200MMAlternative for position 3 | - | ||
34 51 1 458 408 | SHIM - 0,300MMAlternative for position 3 | - | ||
34 51 2 310 338 | SHIM - 0,400MMAlternative for position 3 | - | ||
34 51 1 458 409 | SHIM - 0,500MMAlternative for position 3 | - | ||
34 51 2 310 339 | SHIM - 1,000MMAlternative for position 3 | - | ||
34 51 2 325 976 | SHIM - 0,070MMAlternative for position 3 | - | ||
| 4 | 34 52 2 331 289 | PULSE GENERATOR | - | |
| 5 | 34 51 1 458 494 | FILLISTER-HEAD SCREW - M5X14 | - | |
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 7 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 8 | 71 21 2 314 920 | LABEL - ABS | - | |
71 21 2 335 381 | ABS LABELAlternative for position 8 | - |
