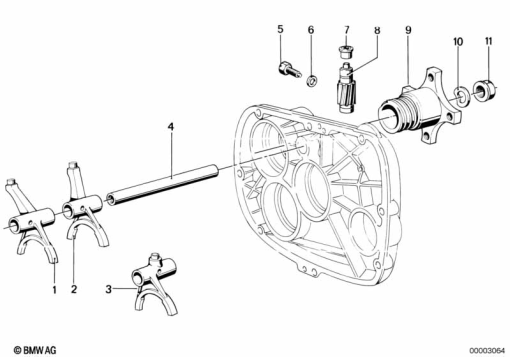

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 234 219 | SHIFTING FORK 5ST GEAR | - | |
| 2 | 23 31 1 234 215 | SHIFTING FORK 1ST AND 2ND GEAR | - | |
| 3 | 23 31 1 234 217 | SHIFTING FORK 3RD AND 4TH GEAR | - | |
| 4 | 23 31 1 231 643 | SELECTOR SHAFT | - | |
| 5 | 23 11 1 230 599 | HEX BOLT | - | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 6 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 6 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
| 7 | 23 22 1 030 176 | BUSH | - | |
| 8 | 23 22 1 230 058 | SPEEDOMETER DRIVE | - | |
| 9 | 23 21 1 232 557 | DRIVE FLANGE | - | |
| 10 | 07 11 9 932 162 | WAVE WASHER - B16 | - | |
| 11 | 23 21 1 230 084 | COLLAR NUT - M16X1.5 | - |
