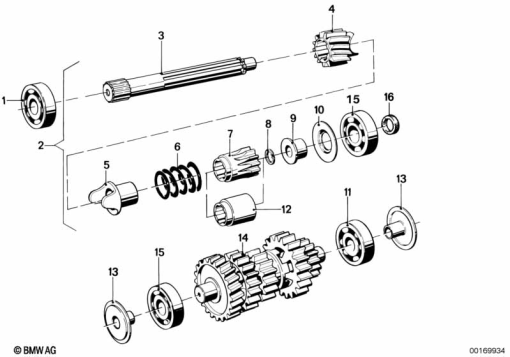

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 1 235 449 | CYLINDRICAL ROLLER BEARING,RADIAL - 20X47X14 | - | |
| 2 | 23 21 1 457 217 | DRIVE SHAFT - 17.5°DEG/D=39.5 | - | |
| 3 | 23 21 2 302 327 | DRIVE SHAFT - D=20MM | - | |
| 4 | 23 21 2 302 326 | GEAR WHEEL - 17.5°DEG / D=33 | - | |
| 5 | 23 21 1 457 297 | THRUST ADAPTER - D=39,5 | - | |
| 6 | 23 21 1 231 303 | COMPRESSION SPRING | - | |
| 8 | 07 11 9 933 516 | SNAP RING - A20 | - | |
| 9 | 23 21 1 232 062 | BUSH | - | |
| 10 | 23 21 1 230 452 | COVER - 1.00MM | - | |
| 11 | 23 12 1 231 495 | GROOVED BALL BEARING - 6304 C3 | - | |
| 12 | 23 21 2 302 329 | INTERMEDIATE PIECE | - | |
| 13 | 23 11 1 233 835 | WASHER | - | |
| 14 | 23 21 1 242 996 | INTERMEDIATE SHAFT - 17.5°DEG | - | |
| 15 | 23 12 1 233 808 | GROOVED BALL BEARING - 6304 C3 RS | - | |
| 16 | 23 12 1 242 522 | SHAFT SEAL - 8X14X4 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
