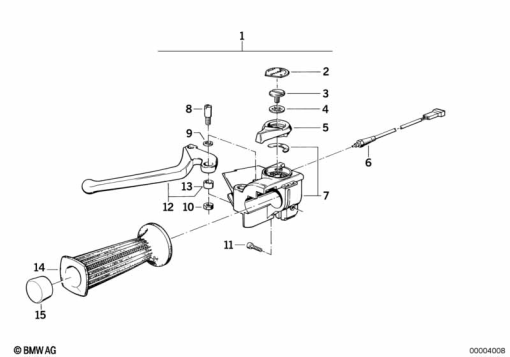

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 457 069 | HANDLE UNIT LEFT | - | |
| 2 | 32 72 1 451 975 | 32 72 1 451 975 | - | |
| 3 | 07 11 9 907 430 | SAUCER-HEAD SCREW - M6X12 | - | |
| 4 | 32 72 1 240 791 | WASHER - 1,200MM | - | |
| 5 | 32 72 1 240 792 | LEVER FOR CHOKE | - | |
| 6 | 61 31 1 459 569 | SWITCH | - | |
| 7 | 32 72 1 457 962 | HOUSING | - | |
| 8 | 32 72 1 451 749 | SCREW - M6 | - | |
| 9 | 32 72 1 230 871 | WAVE WASHER | - | |
| 10 | 32 72 8 532 969 | NUT, SELF-LOCKING - M6 | - | |
| 11 | 07 11 9 919 906 | FILLISTER-HEAD SCREW - M5X16-Z4-8.8 | - | |
| 12 | 32 72 1 338 824 | HAND LEVER, SILVER, LEFT | - | |
32 72 1 451 700 | HAND LEVER, BLACK, LEFTAlternative for position 12 | - | ||
| 13 | 32 72 1 451 796 | BUSH | - | |
| 14 | 32 72 1 453 163 | RUBBER GRIP LEFT ROUND | - |
