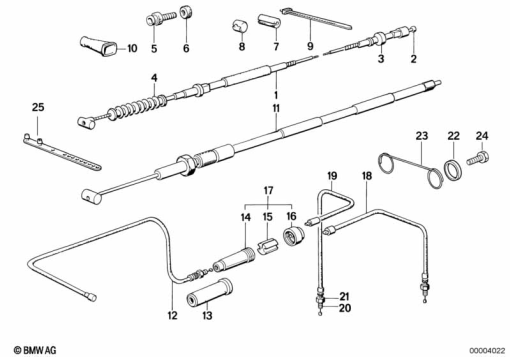

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 2 324 957 | CLUTCH CABLE - L=1436MM | - | |
32 73 2 324 957BC | Clutch CableAlternative for position 1 | - | ||
| 2 | 07 11 9 988 505 | NIPPLE | - | |
| 3 | 32 73 1 230 038 | 32 73 1 230 038 | - | |
| 4 | 32 73 2 325 866 | 0.01 | - | |
| 5 | 32 72 1 234 854 | CABLE ADJUSTER | - | |
| 6 | 32 72 1 232 516 | KNURLED HEAD NUT - M10X1 | - | |
| 7 | 32 72 1 231 610 | FELTRING | - | |
| 8 | 32 72 1 233 550 | NIPPLE HOLDER - D=10MM | - | |
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 10 | 32 73 1 230 037 | 0.25 | - | |
| 11 | 32 73 1 458 090 | ACCELERATOR BOWDEN CABLE, LEFT - L=1130MM | - | |
32 73 1 458 091 | ACCELERATOR BOWDEN CABLE, RIGHT - L=1165MMAlternative for position 11 | - | ||
| 12 | 32 73 1 242 594 | CHOKE CABLE - L=764MM | - | |
| 13 | 32 73 2 301 342 | PROTECTION CAP | - | |
| 14 | 32 73 1 242 014 | CABLE ADJUSTER | - | |
| 15 | 32 73 1 242 014 | CABLE ADJUSTER | - | |
| 16 | 32 73 1 242 014 | CABLE ADJUSTER | - | |
| 17 | 32 73 1 242 014 | CABLE ADJUSTER | - | |
| 18 | 32 73 1 454 605 | CHOKE CABLE LEFT - L=412MM | - | |
| 19 | 32 73 1 242 138 | CHOKE CABLE, BOTTOM - L=487MM | - | |
| 20 | 32 73 1 236 644 | HEX NUT | - | |
| - | Bing hex. nut (42-605). | Bing hex. nut (42-605). | - | |
| 21 | 32 73 1 230 840 | ADJUSTER | - | |
| 22 | 16 11 1 455 167 | GROMMET | - | |
| 23 | 32 73 2 311 754 | HOLDER | - | |
| 24 | 07 11 9 915 331 | HEX BOLT - M6X16-8.8-ZNS | - | |
| 25 | 61 13 1 459 790 | BRACKET FOR ACCELERATOR BOWDEN CABLE | - |
